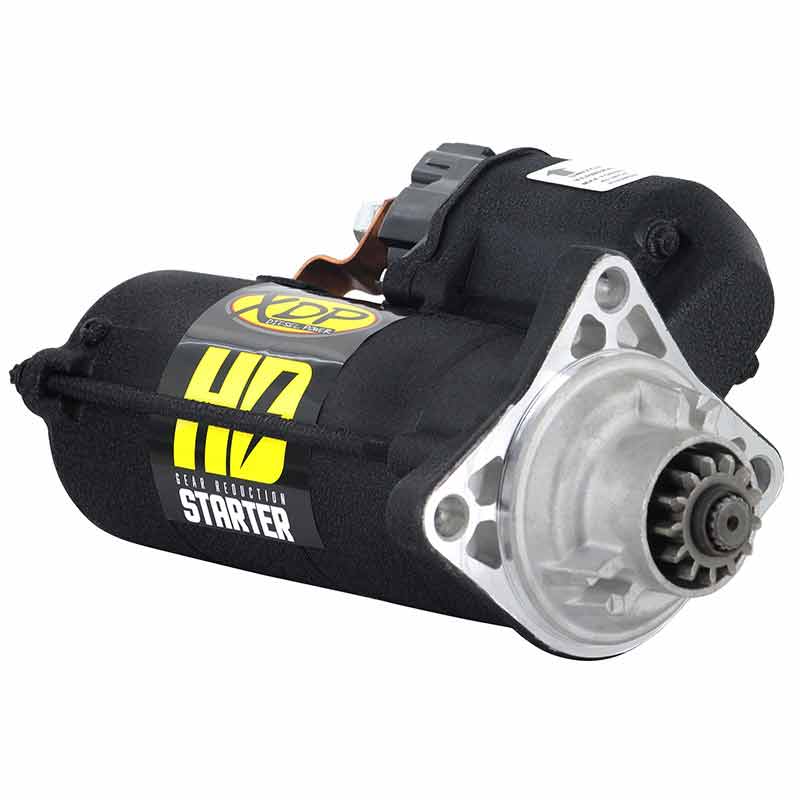

HD Gear Reduction Starter (New) 2007-2022 Dodge 5.9L/6.7L Cummins Wrinkle Black XD259 XDP

You can rely on the XDP HD Gear Reduction Starter (New) Wrinkle Black XD259 to get your 2007-2024 Dodge 5.9L/6.7L Diesel running in the most extreme environments. XDP’s HD Gear Reduction Starters are fast, strong, and durable. This gives you the ability to turn over even the most aggressive diesel engines.

XDP’s HD Gear Reduction Starters feature an efficient motor that provides you with the torque you need to start your engine consistently and reliably. Each starter comes pre-tested, ready for installation, and features a durable Wrinkle Black finish for corrosion resistance and aesthetics.

Features:

• HD Gear Reduction Design
• Wrinkle Black Finish
• Direct-Fit Replacement

Specifications:

• 3.6 HP
• 2.7 KW
• 260 Ft-Lbs. Torque
• 5.5:1 Gear Reduction

Also Fits:

• 2008-2010 Sterling Bullet 4500/5500 6.7L Diesel
• 2007-2024 Ram 2500/3500/4500/5500 5.9L/6.7L Diesel

Tech Notes:
Depending on the conditions, a starter can pull up to 500 amps. These levels of amperage stress ALL components in the circuit including cables, terminals, batteries, and more. Problems with these components can be difficult to diagnose as they appear fine at rest and under a light load, but generate high resistance under heavy amperage draws.

This results in low voltage to the starter while cranking, causing heavier amperage draw, and increased heat leading to starter failure. Batteries, cables and additional components should be checked and serviced regularly.

Voltage measured at the starter during cranking should always be above 11V DC. Starter heat shields are not required, but are an excellent idea for heat protection.
